Independently developed by Millennium Energy Technologies, Ltd., the TC-01 Hydrogen-Helium Analyzer is an intelligent, high-precision online device for quantitative analysis of hydrogen and helium in mixed gases. Tailored for industrial monitoring and laboratory precision testing, it delivers stable, fast and reliable dual-gas detection for complex gas analysis scenarios.
Equipped with a high-efficiency chromatographic column and high-sensitivity TCD detector, the analyzer achieves effective gas separation and anti-interference detection. It covers a wide measuring range from 5 ppm to 20%, supporting both trace and conventional concentration measurement with excellent accuracy and repeatability. The integrated 10-inch industrial touch screen enables real-time data processing, dynamic display of concentration values, equipment status and chromatogram curves, as well as automatic data analysis, greatly improving testing efficiency.
Featuring industrial-grade stability and strong environmental adaptability, the device fits harsh industrial sites and precision laboratory environments. Compliant with the WITS protocol and equipped with an Ethernet port, it supports automatic real-time data output and seamless connection with remote control and monitoring systems for unattended intelligent operation. It is widely applied in new energy, petrochemical, semiconductor, aerospace and scientific research fields, providing reliable gas quality control and safety monitoring solutions for diverse industries.
Product Features
Independent R&D: Patented technology independently developed by Millennium Energy Technologies, Ltd.
Exclusive Design: Maintenance-free gas circuit design without mechanical switching valves.
Advanced Separation & Detection Technology: A chromatographic column is used to accurately separate hydrogen and helium in sample gas, combined with a thermal conductivity detector (TCD) to precisely measure component concentrations.
Excellent Performance: As a real-time analyzer, it delivers long-term stability and high accuracy with a wide measurement range of 10 ppm ~ 20% for hydrogen and helium.

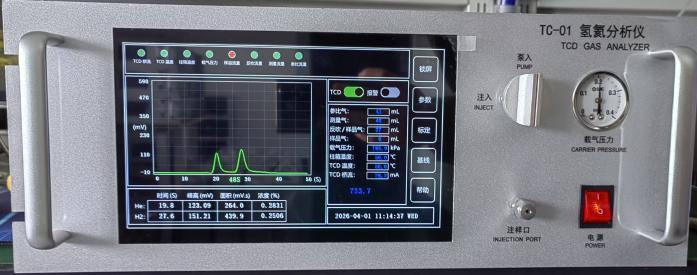

Intelligent Operation Interface: Equipped with a built-in 10-inch industrial touch screen to process chromatographic data in real time, display equipment status and chromatogram curves for intuitive and easy operation.
Automatic Analysis & Output: Automatically completes the measurement of hydrogen and helium components in sample gas, and outputs test results via Ethernet port in Wits protocol.
Wide Range of Applications: An ideal solution for hydrogen-helium component measurement, suitable for diverse working scenarios.
