The HSG Hydrocarbon Phase State Evaluation System can efficiently and precisely distinguish between gas layers and condensate gas layers through the analysis of original absorption characteristic spectra, providing robust technical support for oil and gas exploration and development. The technical advantages of HSG lie in its intuitive and efficient spectral feature analysis, which significantly improves the accuracy of geological evaluation and enhances development efficiency.

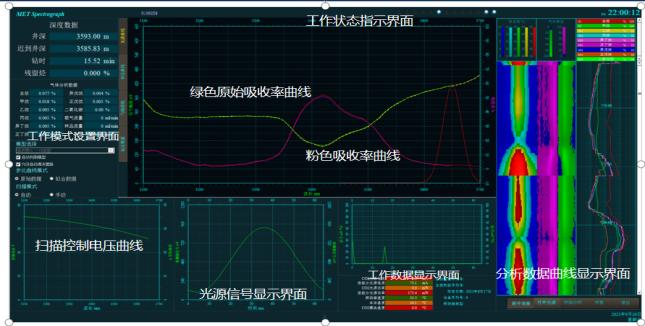

Real-time Data Acquisition Interface

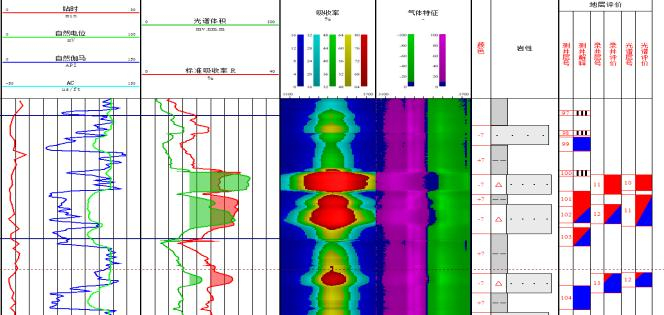

Evaluation and Interpretation Interface

Fracture identification

The HSG fracture identification function plays an important role in oil and gas exploration and development.

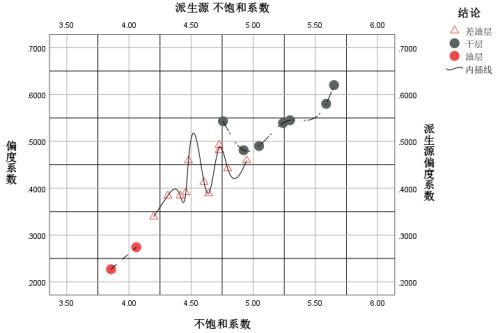

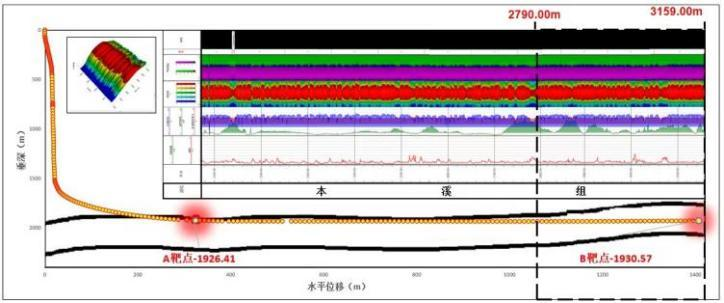

Reservoir zonation

The system is applied to reservoir zonation, and the oil-bearing grade of the reservoir is qualitatively evaluated through specific parameter analysis.

Application in horizontal well logging

HSG can be applied to the mud logging of horizontal well to evaluate the gas content and the development of fracture.

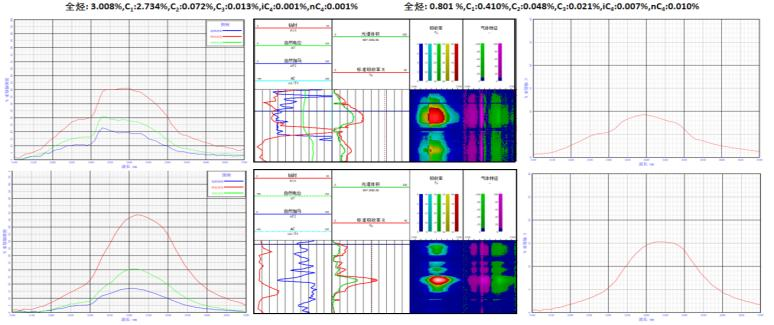

Differentiation of gas layers and condensate gas layers

The precise differentiation of gas layers and condensate gas layers provides crucial geological evidence for oil and gas exploration and development.
